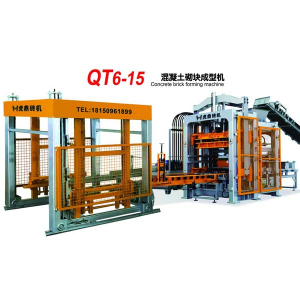

QT6-15 concrete block forming machine

Product description: QT6-15 conrete block making machine,QT6-15 conrete block machine
INQUIRY

block machine Main Technical Parameters:

Forming method	Vibration compression molding
Vibration frequency	3800-4500
preset pressure	25mpa
Molding cycle	15-20(s)
Exciting force	68KN
Installed capacity	31.4(kw)
Total Weight	8500（kg）
Exterior specifications	9450×3300×2700(mm)
Pallet specifications	880×680×20(mm)

Parameters of concrete block forming machine:
Hollow brick: 6 pieces / mold (390) × one hundred and ninety × 190) × 8 hours = 8640 ~ 11520 yuan / shift
Solid brick: 32 pieces / mold (240 pieces) × one hundred and fifteen × 51） × 8 hours = 46080 ~ 61440 pieces / shift
Perforated brick: 15 pieces / mold (240) × one hundred and fifteen × 90） × 8 hours = 21600 ~ 28800 yuan / shift
Pavement brick: 18-21 pieces / mold (200) × one hundred × 60） × 8 hours = 27000 yuan / shift
Note: the above output table is the theoretical calculation value. Molding cycle and production volume are related to raw materials and product types
Technical features of block machine:
1. Imported pure components of high-efficiency hydraulic proportional system (more efficient and energy-saving)
2. Imported intelligent PLC touch screen and pure electrical components (high degree of automation and easier operation)
3. Arch breaking type fast distribution device (especially beneficial and more uniform for porous brick distribution)
4. Extended high-efficiency vibration technology (shorter product forming time and higher compactness)
5. Special process of high temperature heat treatment (more wear-resistant and stronger mold)
