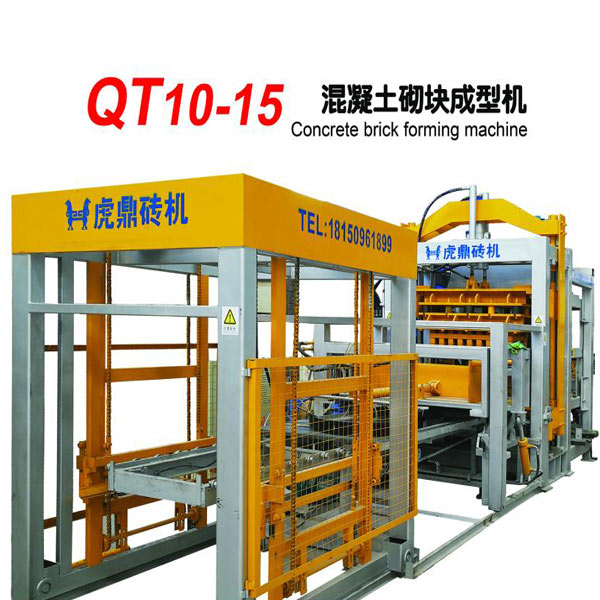

QT10-15 Permeable Brick Machine

Product description: QT10-15 Automatic Block Making Machine,QT10-15 Permeable Brick Machine
INQUIRY

QT10-15 Permeable Brick Machine

Tiger Ding Concrete block machine Technical Features:

Imported pure components of high-efficiency hydraulic proportional system (more efficient and energy-saving)
Imported intelligent PLC touch screen and pure electrical components (high degree of automation and easier operation)
Arch-breaking rapid distribution device (especially beneficial and more uniform for porous brick distribution)
Extended high-efficiency vibration technology (shorter product molding time and higher compactness)
Special process for high temperature heat treatment (the mold is more wear-resistant and stronger)

Block Machine Main Technical Parameters:

Forming method	Vibration compression molding
Vibration frequency	3800-4500
preset pressure	30.5mpa
Molding cycle	15-20(s)
Exciting force	105KN
Installed capacity	45.2(kw)
Total Weight	13800（kg）
Exterior specifications	11500×4050×2800(mm)
Pallet specifications	1100×880×25(mm)

Brick machine forming block parameters:

Hollow brick:
10 pieces / mould (390 × 190 × 190) × 8 hours = 114400 ～ 19200 pieces / working day
Solid brick:
51 pieces / mould (240 × 115 × 51) × 8 hours = 174880 ～ 99840 pieces / working day
Perforated brick:
24 pieces / die (240 × 115 × 90) × 8 hours = 134560 ～ 48000 pieces / working day
Pavement brick:
31 pieces / mould (200 × 100 × 60) × 8 hours = 150400 ～ 56000 pieces / working day

Note: The above output table is a theoretical calculation. The molding cycle and production volume are related to the raw materials and product types.
