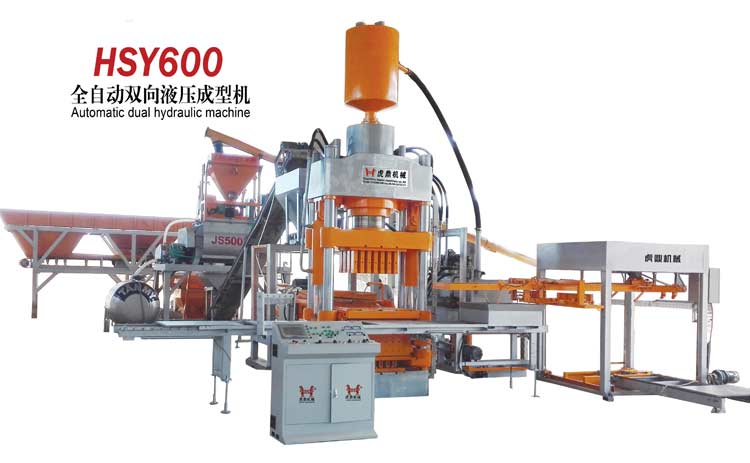

HSY600 Fly Ash Brick Making Machine,Hydraulic Brick Machine
|
Name / type |
HSY600 |
HSY800 |
|
Mixer Model |
JS750 |
JS750 |
|
Host size |
3300×2610×3750(mm) |
4300×2610×3750(mm) |
|
Molding cycle |
15-20(S) |
15-20(S) |
|
Weight |
25(T) |
31(T) |
|
Host power |
48.7(kw) |
70(kw) |
|
Rated pressure |
31.5(MPA) |
31.5(MPA) |
|
Plant area |
800 (㎡) |
850 (㎡) |
|

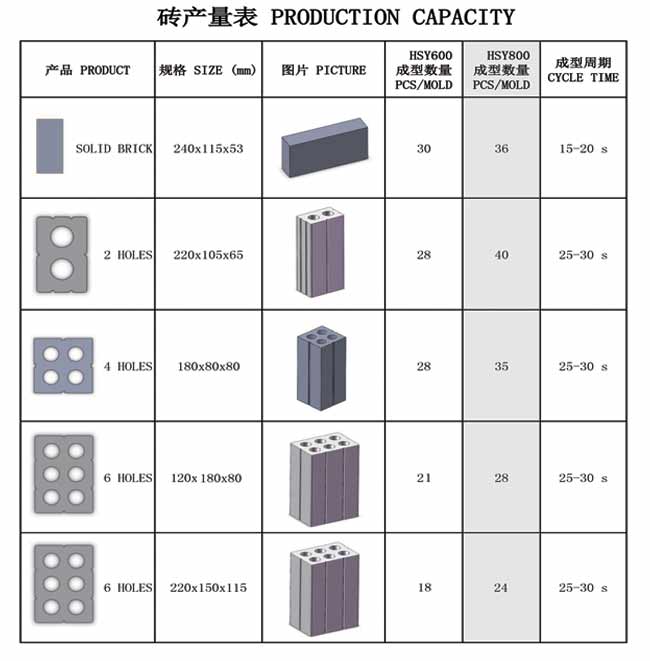

PRODUCT |
Specifications |
HSY600 PCS/MOLD |
HSY800 PCS/MOLD |
Molding cycle |
|
SOLID BRICK |
240×115×53 |
30 |
36 |
15-20 S |
|
2 HOLES |
220×105×65 |
28 |
40 |
25-30 S |
|
4 HOLES |
180×80×80 |
28 |
35 |
25-30 S |
|
6 HOLES |
120×180×80 |
21 |
28 |
25-30 S |
|
6 HOLES |
220×150×115 |
18 |
24 |
25-30 S |
HSY600 fully automatic bi-directional hydraulic moulding machine, automatic production line is composed of host mixer, electricity, control system, hydraulic system, pneumatic system, multi-function conveying machine, setting machine and feeding machine. Through the optimization of design precedure, match with optimal famous and reliable performance domestic and foreign brand hydraulic electricity and auxiliary parts. Organically relating every parts to realize the automatic production process.
