HSY1100 Sand-Lime Brick Machine

Product description: HSY1100 Sand-Lime Brick Machine,Hydraulic block machine
INQUIRY

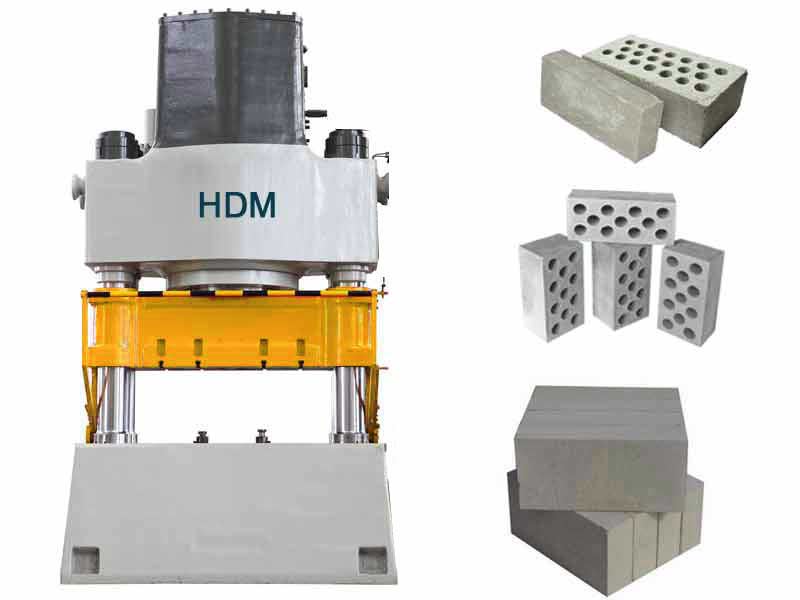

Huding HSY1100 Sand-Lime Brick Machine,Hydraulic block machine

Huding HSY11000 type automatic bin-direction hydraulic molding machine, consists of host machine,

electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor

system, stacking system, feeding unit into a fully automatic production line. Through the optimization

of the design program, optimizing the performance of reliable domestic and foreign well-known manufacturers of hydraulic electrical unit accessory, relate the parts organically, realize the automation

of production process.

11000kN（1100t）
Item	Specification	Mould/pcs	Hollow Ratio
Solid Brick	240×115×52	42pcs	Solid
8 holes block	240×115×90	20pcs	≈17%
11 holes block	240×115×90	20pcs	≈23%
11 holes block	240×190×90	10pcs	≈30%
Max height of feeding material	≤300mm
Molding cycle	18 S ～20S
Molding ways	Double head floating frame
Feeding car frame structure	Fixed rotating feeding material Pneumatic clamping brick
Rated pressure	31.5Mpa
Allowable pressure	25Mpa
Power	100kW
Weight	35000 kg
